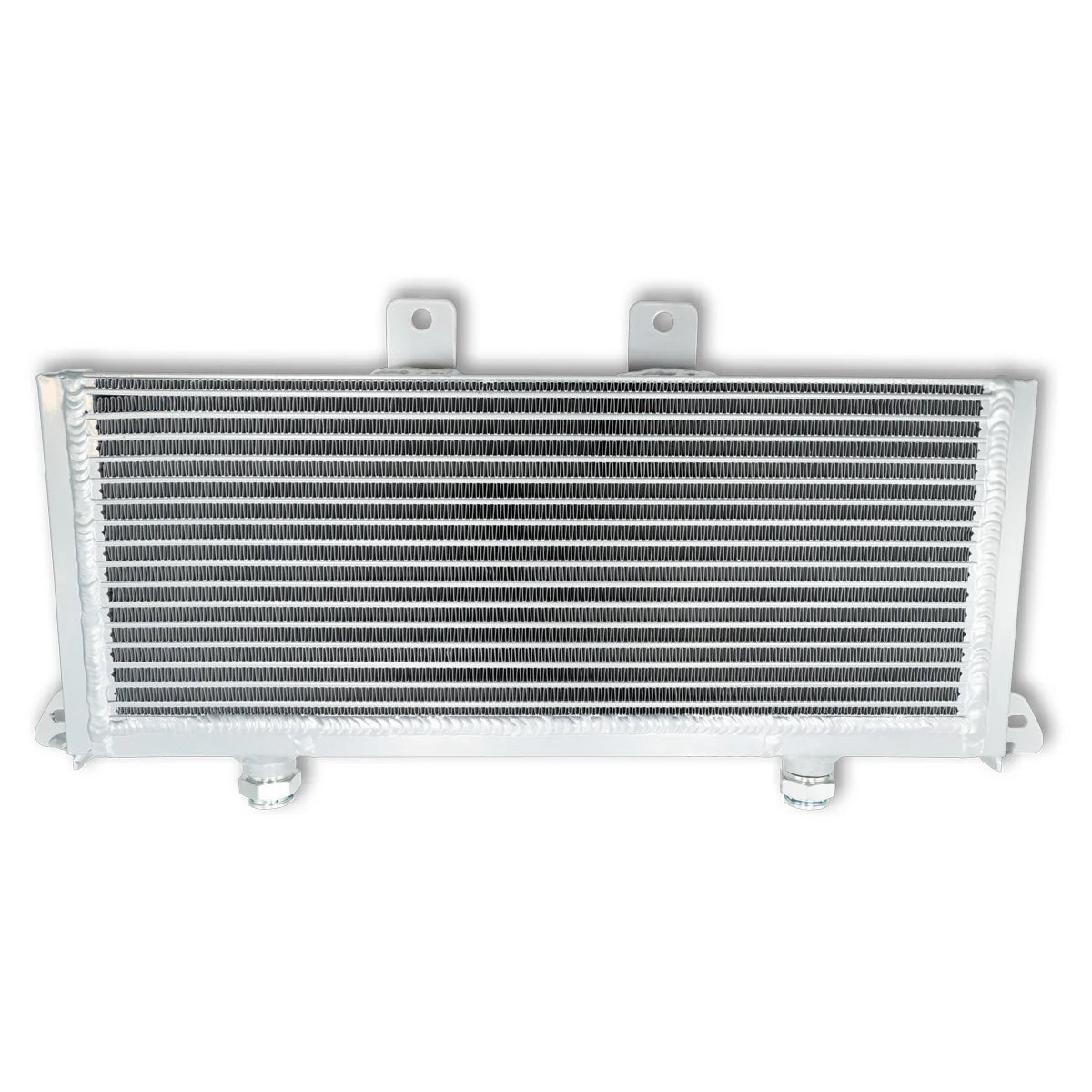

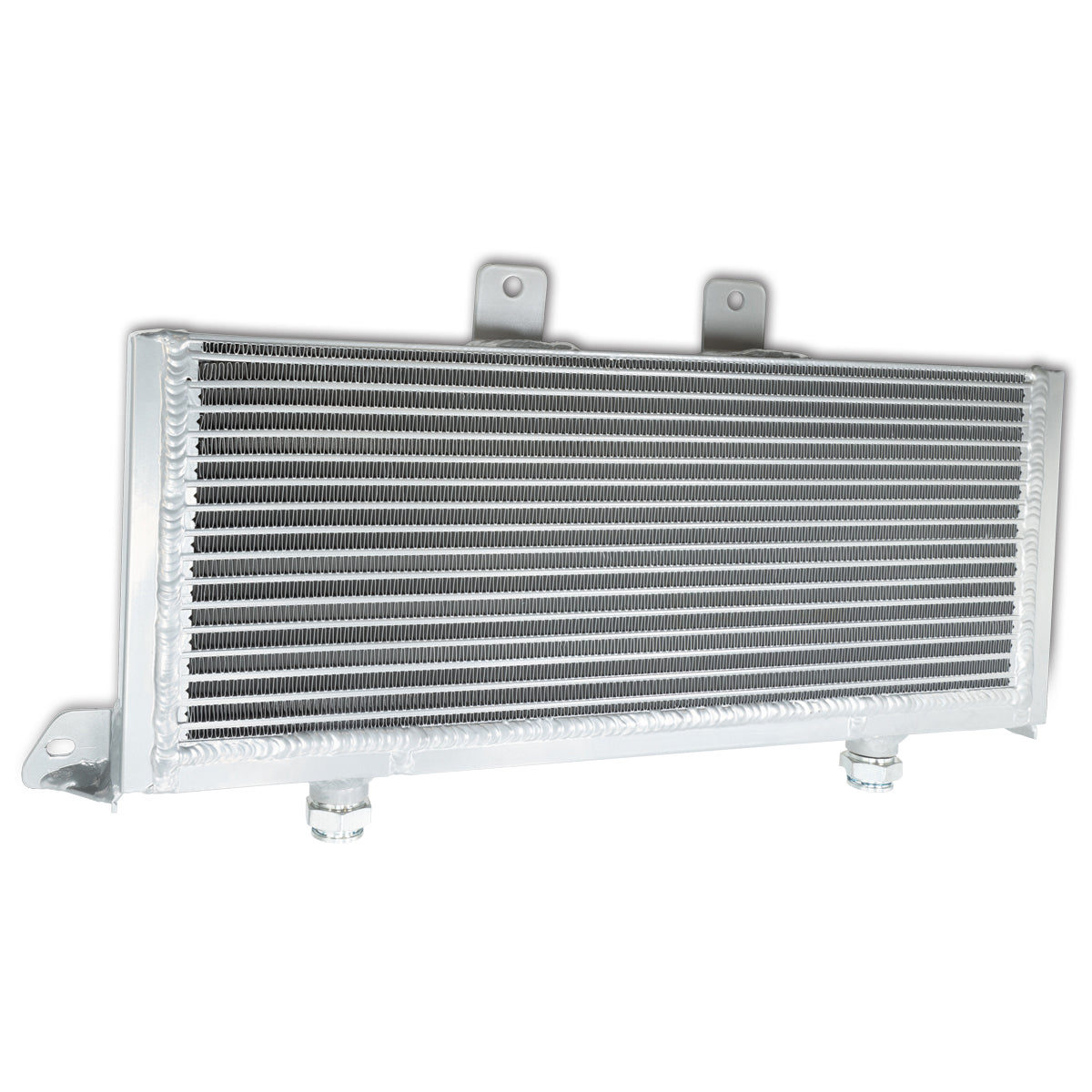

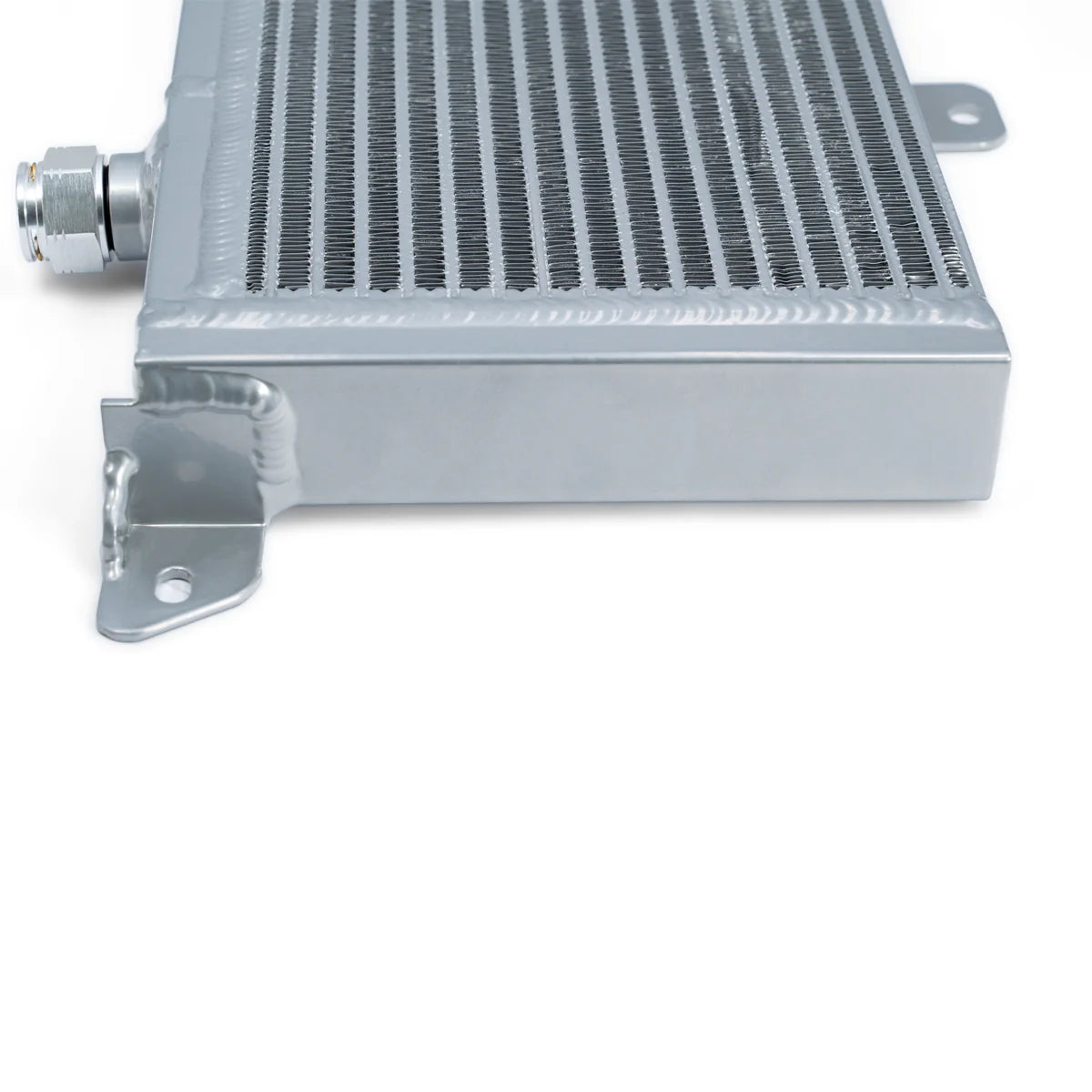

Transmission Cooler Bar and Plate

2001-2003 6.6L Duramax with Allison 1000

Features

• 2.8 times larger effective core volume and cooling capacity

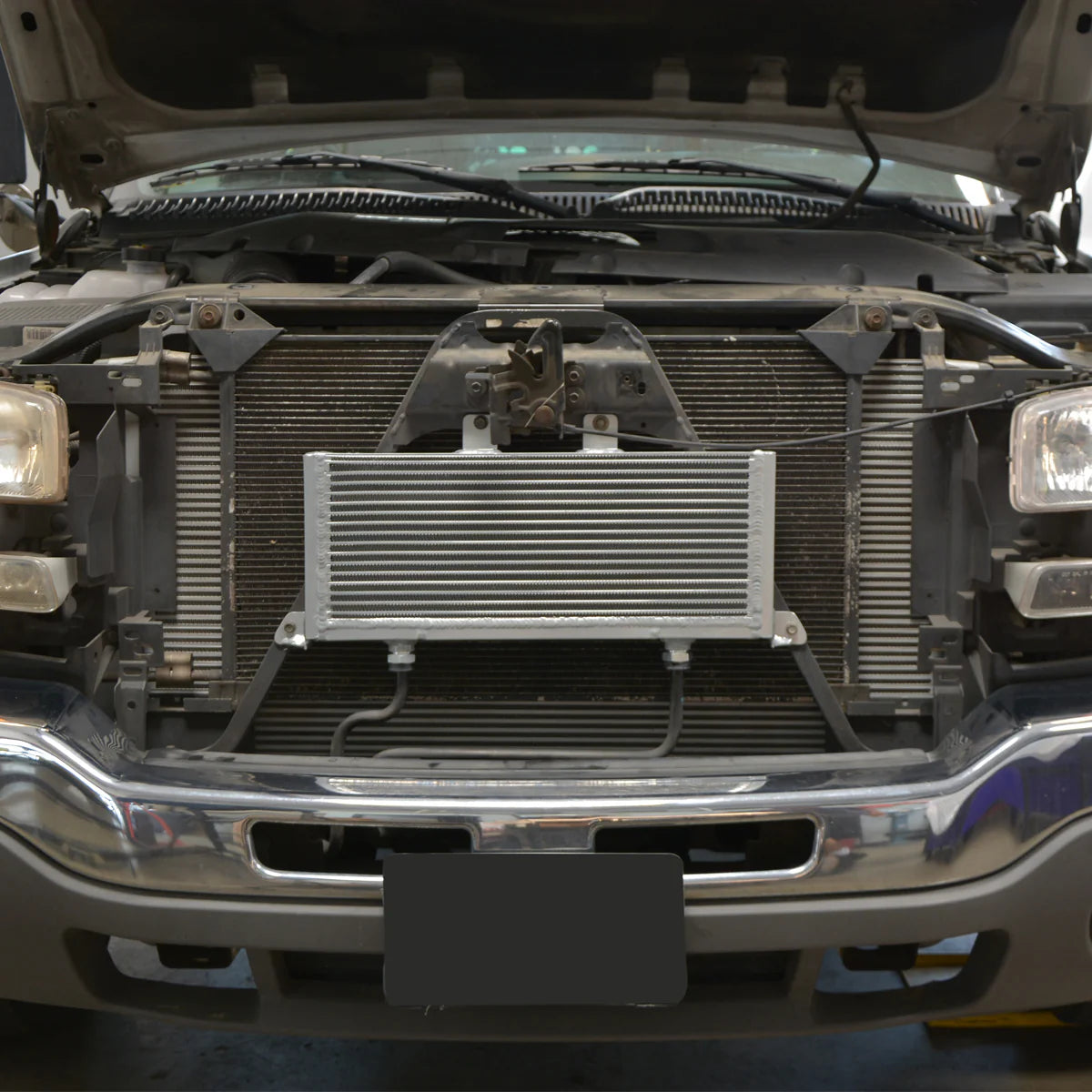

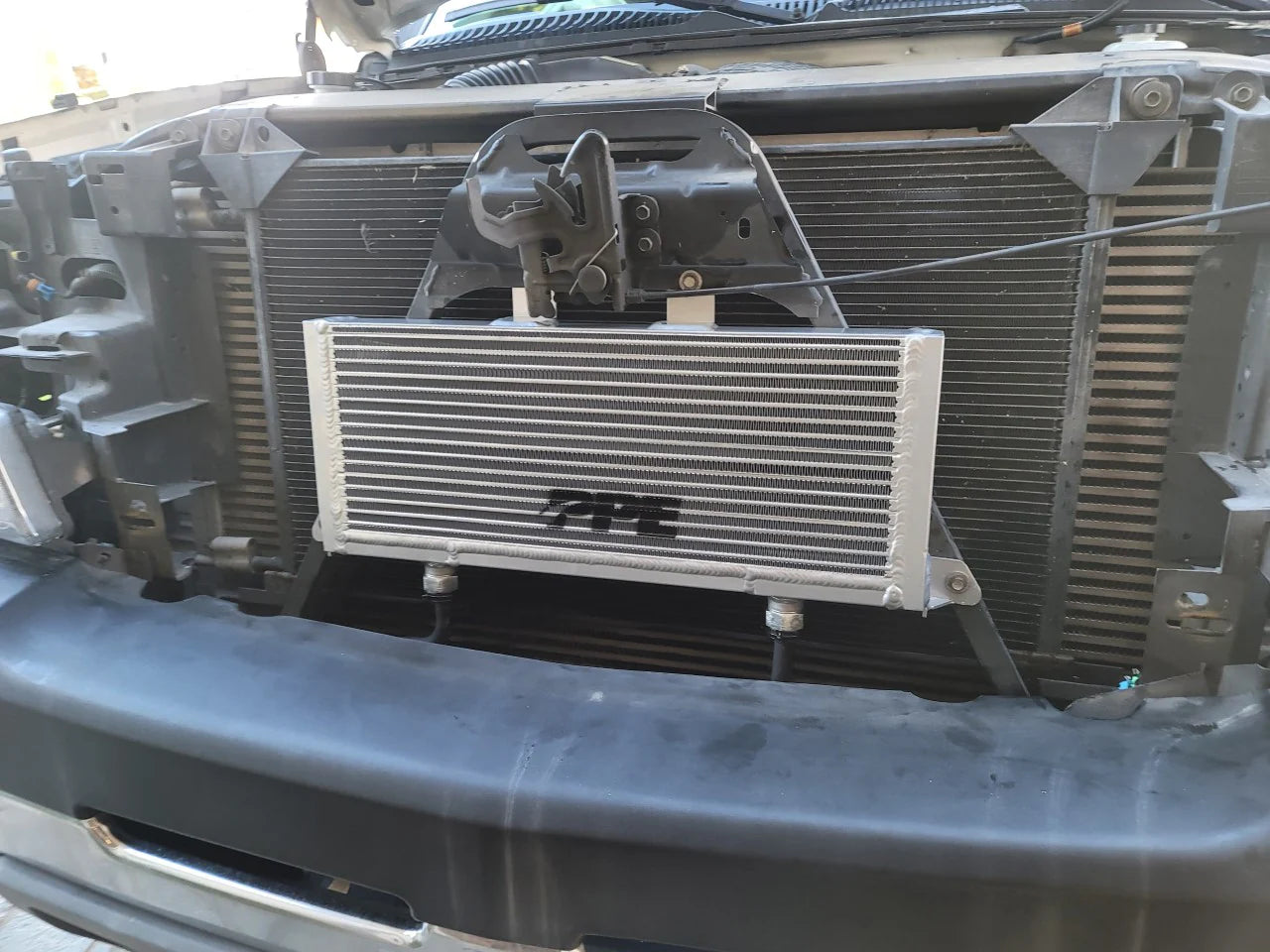

• Direct replacement using factory mounting locations
• High-quality bar and plate style aluminum construction

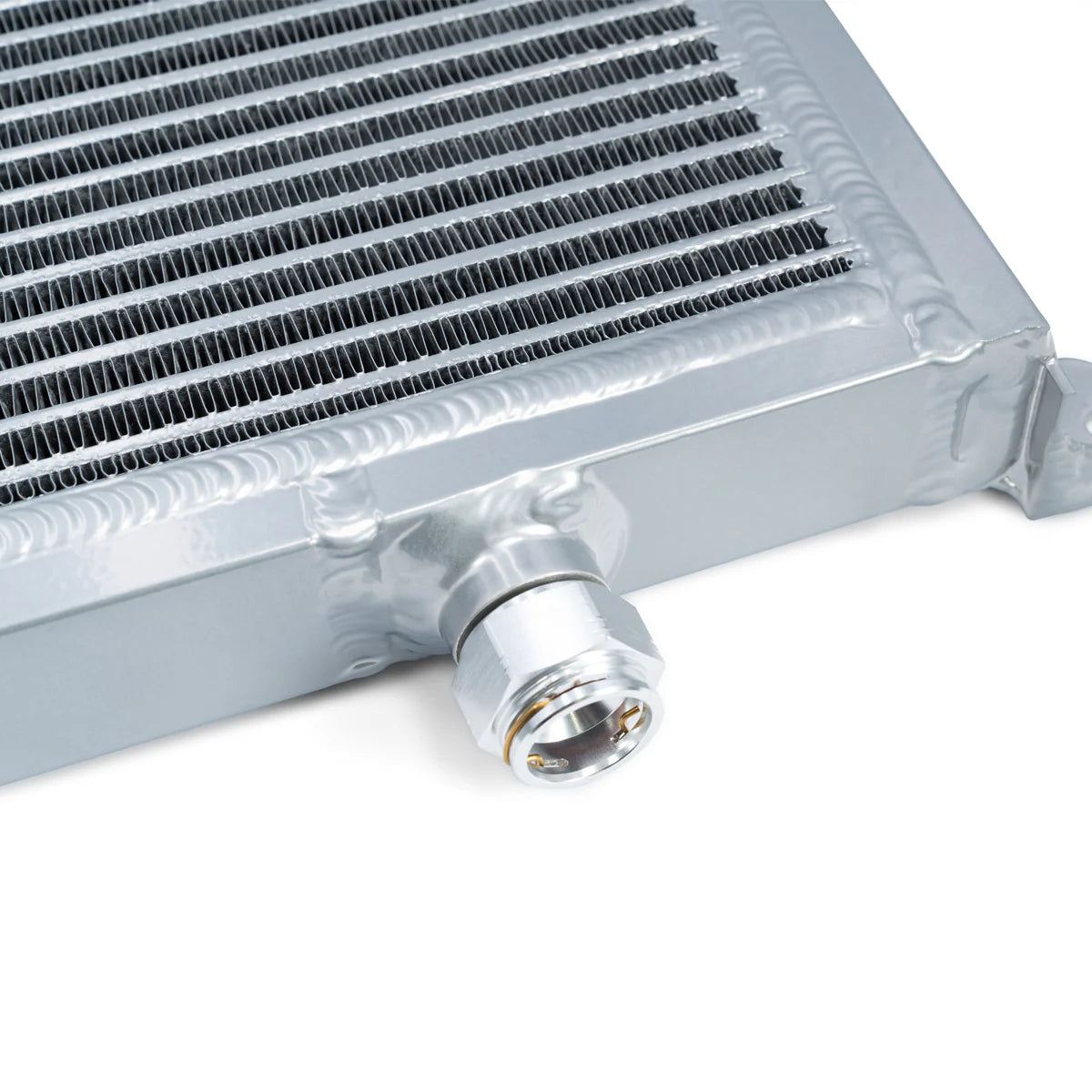

• 7/8-14 Trans lines quick connect fittings

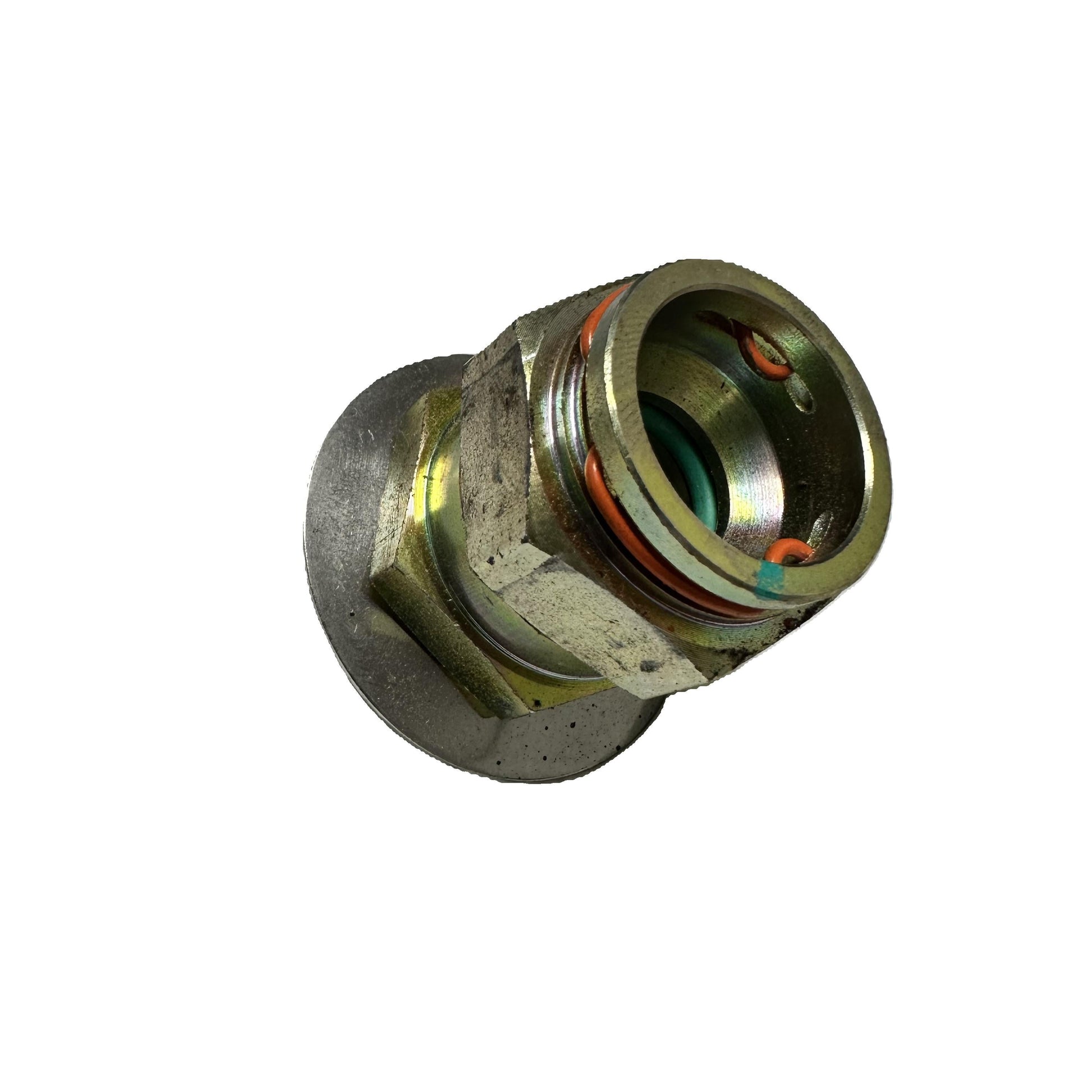

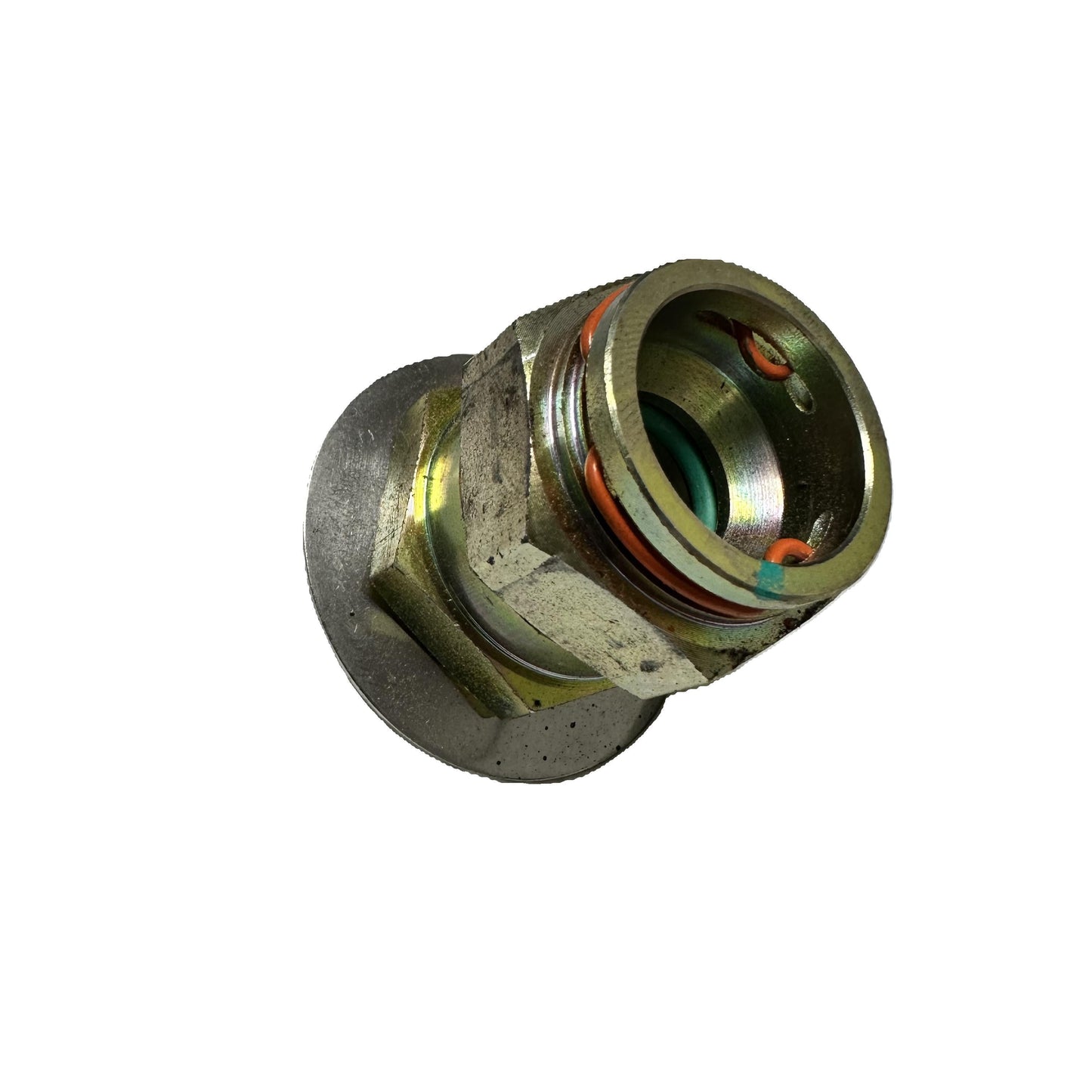

• Comes with brand new quick-connect fittings
• Limited lifetime warranty

NOTE: This cooler is only compatible with the factory connectors with orange clips.

Do you have purple clips? You're looking for this cooler!

Excessive heat prematurely damages the transmission. PPE Performance Bar and Plate Transmission Cooler give you the Proper cooling of your transmission fluid that you need to extend your transmission lifespan.

Bar and plate style cooler is far superior to the OEM-style tube and fin cooler in terms of cooling performance. Within each repeating section, the internal staggered square-pattern fins divert the high-temperature transmission fluid and increase the heat-transferring surface area. The external louvered fins maximize the cooling effect of ambient air.

When the mainline pressure is increased with upgrades such as a high-performance transmission kit, your transmission generates additional heat. A PPE Performance Transmission Cooler is critical in such situations.

PPE’s Transmission Cooler Kit features a simple bolt-on installation and is covered by our limited lifetime warranty.
