FASS Fuel Systems Fleet Filter Pack
Perfect for the shop or keeping your garage stocked, each FASS Fuel Filter Pack contains three (3) (XWS3002) Extreme Water Separators and three (3) (PF3001) Particulate Filters! Designed with convenience in mind, the new filter packs make it easy to maintain multiple FASS Fuel Systems!

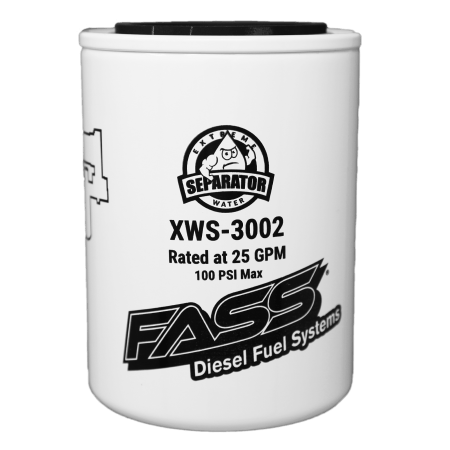

The XWS3002, the new more efficient extreme water separator is rated at 2 microns absolute! Because the filter element traps over 99% of the water, a drain is no longer needed on the water separator.
The new XWS3002 MUST be used in conjunction with the PF-3001, the new filters cannot be used in combination with the FF3003/FF-3010 or FS-1001/FS-1020.
When replacing the discontinued filters with the new XWS3002 and PF3001, the XWS3002 will now be placed on the pressure side of the pump and the PF3001 will be placed on the suction side.*

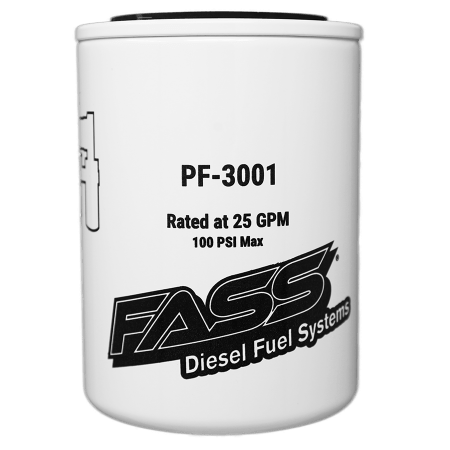

The new Particulate Filter is rated at 144 microns. The 144-micron Particulate Filter on the suction side will drastically reduce cavitation, increase flow properties, lower the FASS System’s sound output, and remove larger fuel particulates.

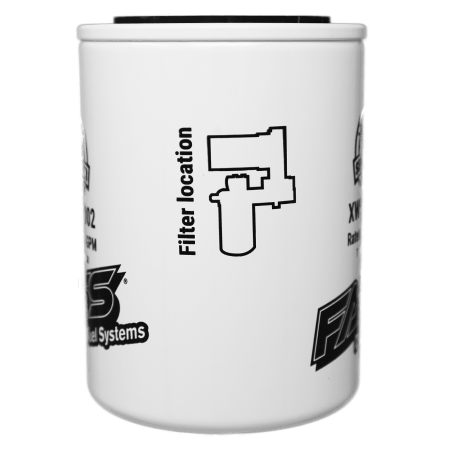

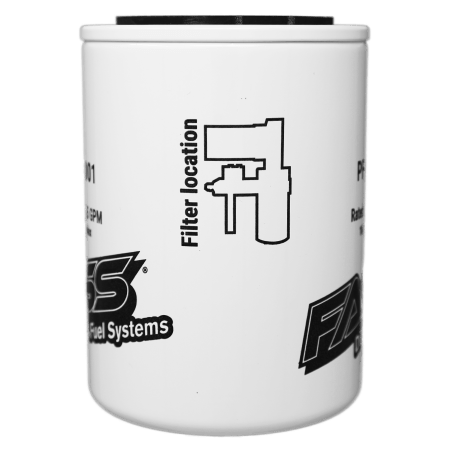

*Please see the location diagram on the new filters for proper placement.

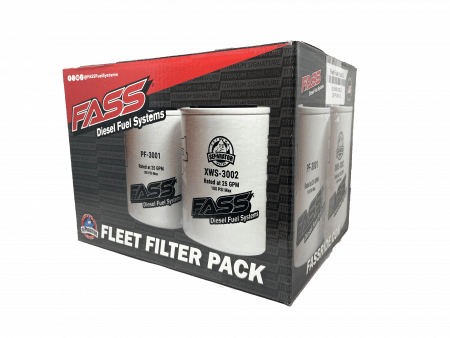

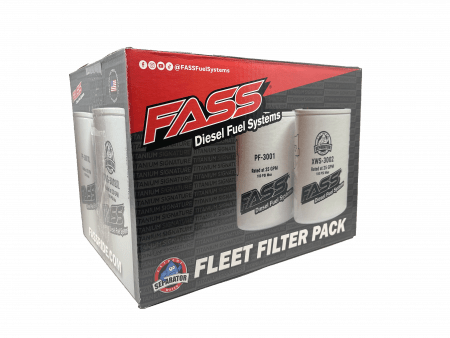

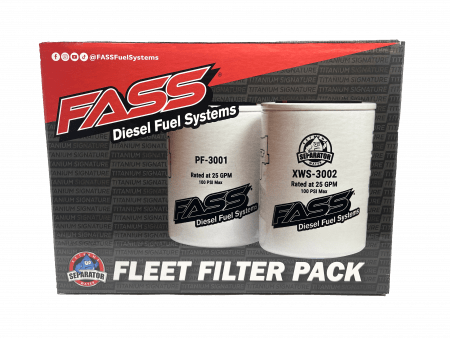

Each FASS Fuel Filter Pack contains:
- Three (3) (XWS3002) Extreme Water Separators
- Three (3) (PF3001) Particulate Filters
For use with: FASS Competition Series, Industrial Series, Drop-In Series, FASS Titanium Series or FASS Titanium Signature Series Systems
